2001-10 Duramax Airdog FP-100-4G Air/Fuel Separation System

Improve the fuel system on your 2001-2010 GM 6.6L Duramax LB7/LLY/LBZ/LMM (Stock To Moderate) with the AirDog A4SPBC185 FP-100-4G Air/Fuel Separation System from XDP. When you upgrade the components and the performance of your diesel engine, it demands improved fuel flow. Higher fuel flows increase the vacuum at the fuel pump and agitation in the fuel tank. This results in additional air/vapor in the fuel system and prevents your engine from performing at its absolute best. In addition, air and vapor can cause galling and pitting of the injector barrel/plunger assembly and also tip erosion. The AirDog removes air from the fuel that could cause permanent damage to your injectors and prevents your engine from performing at its best. The AirDog also provides the fuel pressures and flow your diesel engine needs to reach its maximum level of performance.

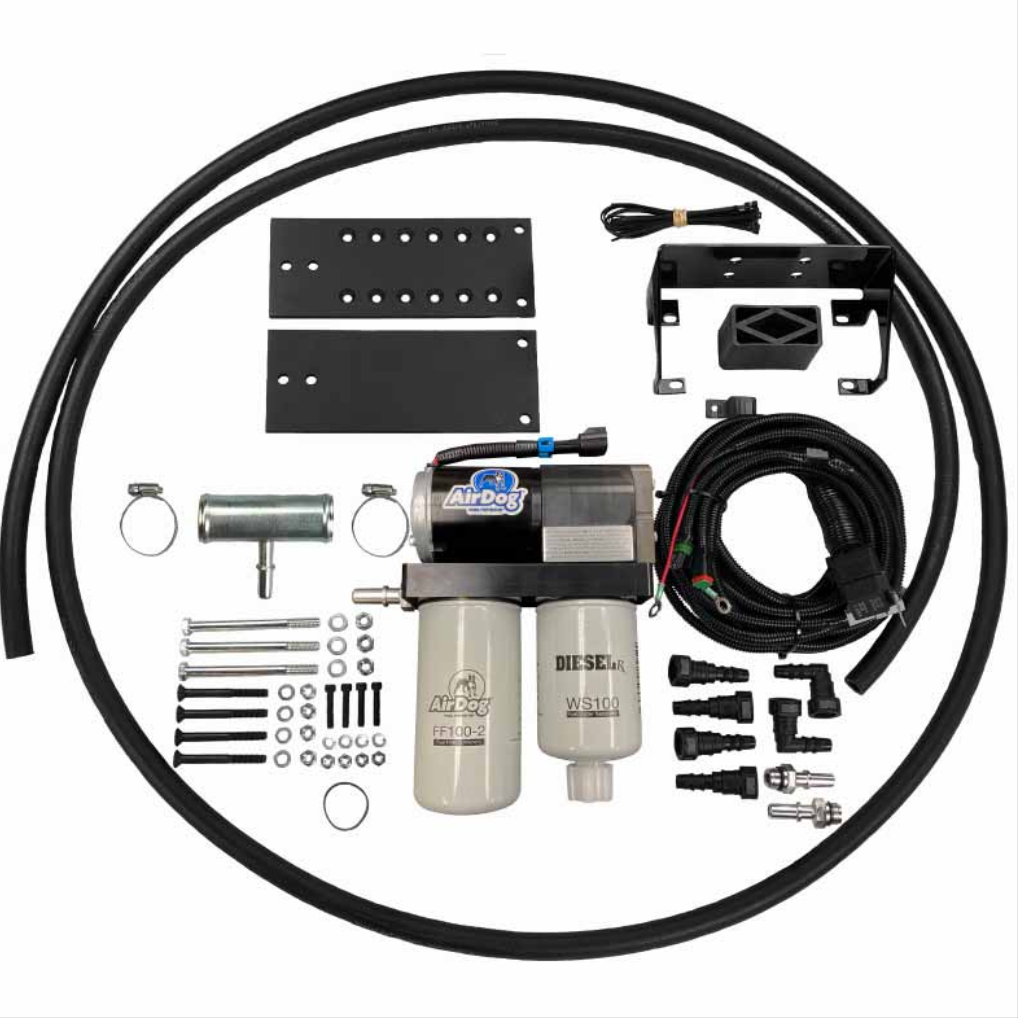

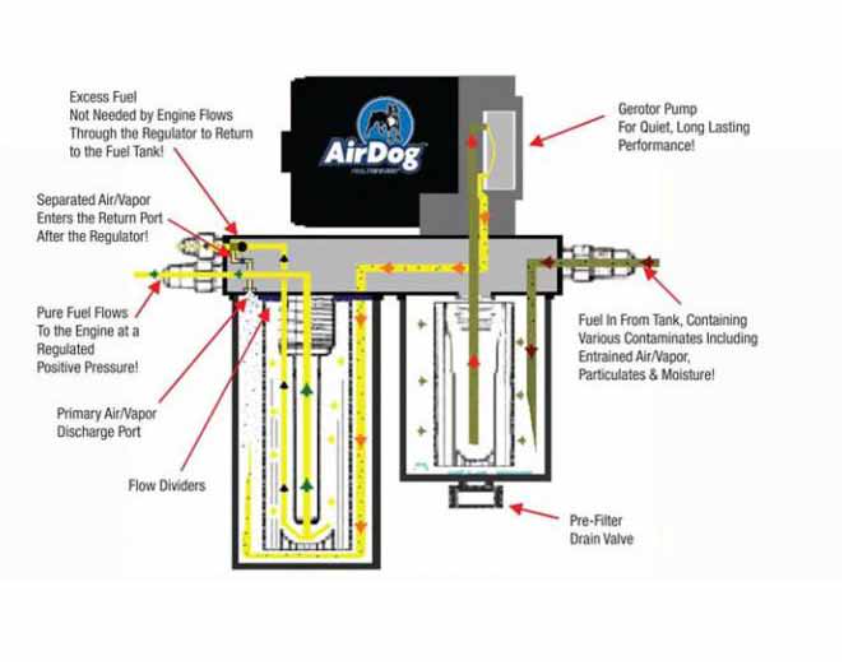

The AirDog operates by pulling fuel from the fuel tank, which contains entrained air/vapor, particulate contaminants, and unknown quantities of moisture. Water and big particle contaminants are removed from the fuel when it travels through the water separator. The fuel then reaches the fuel pump with only entrained air/vapor and minute contaminants remaining. The residual particle contaminants are captured and trapped while the fuel flows through the fuel filter under positive pressure. The entrained air and vapor are also separated and returned to the tank. The clean fuel is then delivered to your engine at the correct pressures. Each kit comes with all the needed plumbing, hardware, wiring, mounting bracket, and other components needed for installation.

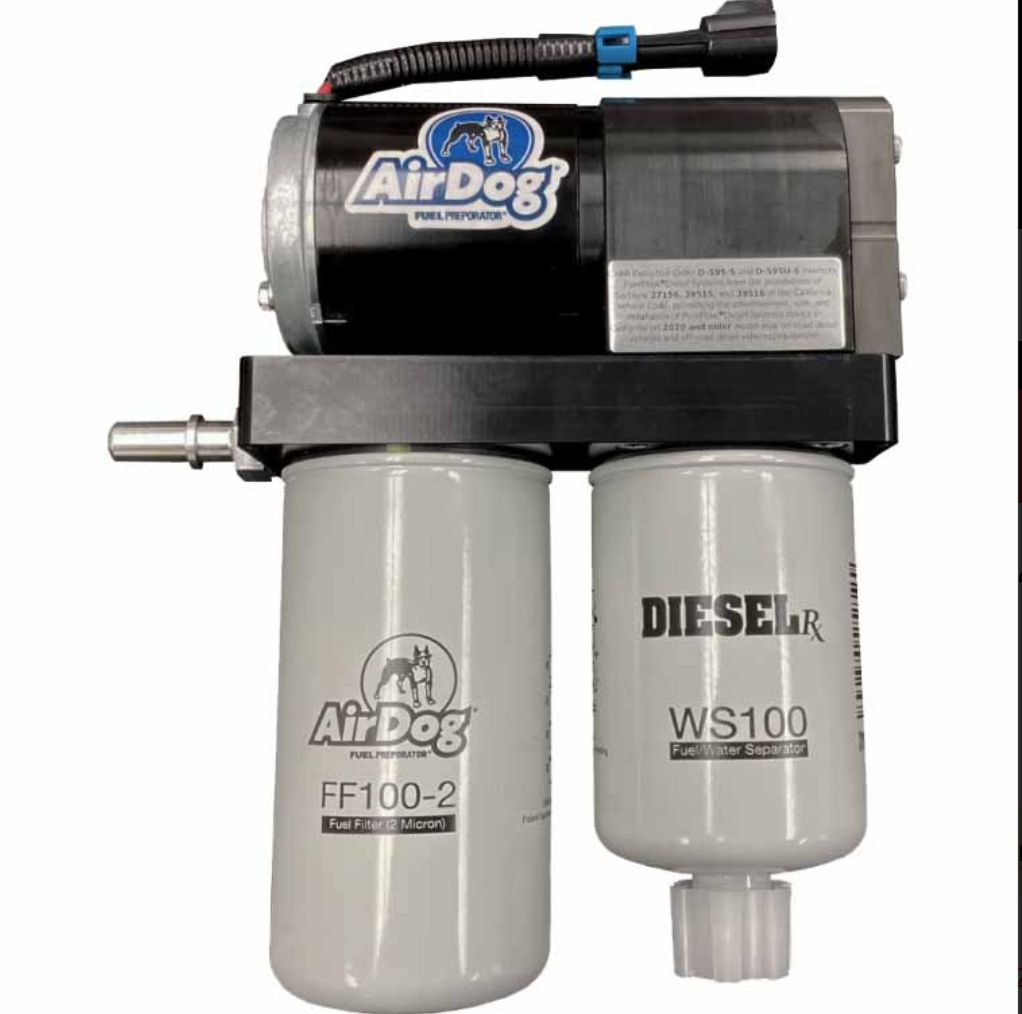

AirDog has engineered this system to remove water, particulates, vapor, and entrained air from diesel fuel. This lift pump and filter system delivers clean fuel to your engine. This AirDog system features their traditional non-adjustable/ high flow return base but integrates the 4G motor they have been utilizing for years with great success. By maintaining this base design, it enables AirDog to offer a budget-friendly system, with a very proven and reliable motor design.

FEATURES: 100 GPH Fuel Pump, Lifetime Limited Warranty, Improved Throttle Response, Optimized Engine Performance, Removes Air & Water From Fuel, Features Reliable 4G Motor Design, Increases Overall Engine Efficiency, All Necessary Wiring, Plumbing, & Installation Hardware Included.
